Technical characteristics of the Peugeot 208 – Féline, Peugeot 208: Exterior and interior dimensions.

Peugeot 208: Exterior and interior dimensions

The new Peugeot 208 displays a contained weight thanks to the adoption of the new CMP platform, which allows a gain of 30 kg compared to the previous PF1 platform. Indeed, the entry -level Peugeot 208 displays an empty mass of 1,023 kg on the scale.

Technical characteristics of the Peugeot 208

Peugeot 208 technical characteristics

We invite you to download the different official technical sheets Peugeot from the technical characteristics of the Peugeot 208:

Exterior dimensions Peugeot 208 II
External dimensions
PEUGEOT 208 II interior dimensions
Interior dimensions
Peugeot 208 II safe volumes
Chest volumes

Peugeot 208 dimensions

  • Length: 4.055 m
  • Width: 1.745 m / 1.765 m (folded mirrors)
  • Height: 1.430 m
  • Height of the vacuum loading threshold: 0.680 m
  • Supervisor: 2.540 m
  • Ground clearance (walking order): 110 mm
  • Front / rear overhang: 0.825 m / 0.690 m
  • Stroke between sidewalks: 10.4 m
  • Mini chest: 265/309 DM 3 VDA
  • Maximum chest: NC DM 3 VDA
  • Mass: from 1,023 kg (depending on engines)
  • Tank capacity: 40/44/41 L (Puretech 75 / petrol / diesel)

Longer, wider and lower than the first Peugeot 208, this new generation adopts a distinctive silhouette evoking sportiness with its tense and pure lines. It is therefore more habitable inside, while the trunk loses 20 dm 3 compared to the 208 I.

Peugeot weight 208

The new Peugeot 208 displays a contained weight thanks to the adoption of the new CMP platform, which allows a gain of 30 kg compared to the previous PF1 platform. Indeed, the entry -level Peugeot 208 displays an empty mass of 1,023 kg on the scale.

CMP/E-CMP: the modular and efficient platform of the Peugeot 208

Peugeot 208 II CMP platform

The new Peugeot 208 is built from the latest generation of PSA group platform: the CMP (Common Modular Platform)). Reserved for B and C segments, and shared with the DS 3 Crossback, or the future Peugeot 2008 II and Opel Corsa, this new base complements the offer of the EMP2 platform (Efficient Modular Platform)).

As its name suggests, the CMP platform is modular in terms of dimensions and engines. Multi-energy, it allows the choice to its future customers of the type of traction: thermal (petrol/diesel) or electric.

Efficiency has been at the heart of concerns throughout its development. This new platform contributes to limiting CO2 emissions from the new Peugeot 208 thanks to:

  • its reduction (30 kg vs the PF1 platform),
  • Improving its aerodynamics (smoothing of the base and use of controlled air entries),
  • The decrease in rolling resistance (class A tires and reduction of mechanical friction of trains),
  • Optimization of traction channels (improvement in combustion yields, down-sizing, reduction of mechanical friction, elongation of transmissions and generalization of stop & start).

The CMP platform also makes it possible to offer an increased level of comfort and safety:

  • Improved acoustic and thermal comfort on board, reduction of vibrations,
  • Availability of driving aids worthy of the higher and unprecedented segments on the B segment.

For more details, we invite you to download the detailed characteristics of the 208 above…

Summary of the file: Peugeot 208

Peugeot 208

  • Peugeot 208
  • Peugeot 208 style and finishes
  • Personalization of the Peugeot 208
  • Peugeot 208 equipment
  • PEOGEOT 208 engines
  • Technical characteristics of the Peugeot 208
  • The Peugeot 208 prices and options
  • Peugeot 208 brochures and documentation
  • Peugeot 208 accessories and references
  • Miniatures of the Peugeot 208
  • Peugeot E-208
  • Peugeot 208 GT Line
  • Peugeot 208 GTI
  • Peugeot 208 restyled
  • Peugeot 208 Roland Garros
  • Peugeot 208 Business
  • Peugeot 208 Business
  • Peugeot 208 Auto-school
  • Peugeot car agent
  • Peugeot automotive technical journals

Peugeot 208: Exterior and interior dimensions

Total length, height, chest volume … Once you have traveled this page, the characteristics of the Peugeot 208 will no longer have any secrets for you !

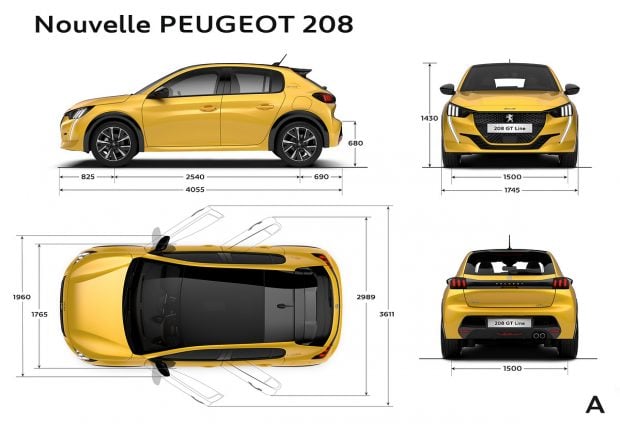

Exterior dimensions of the Peugeot 208

The external dimensions of the Peugeot 208

Interior dimensions of the Peugeot 208

The interior dimensions of the Peugeot 208

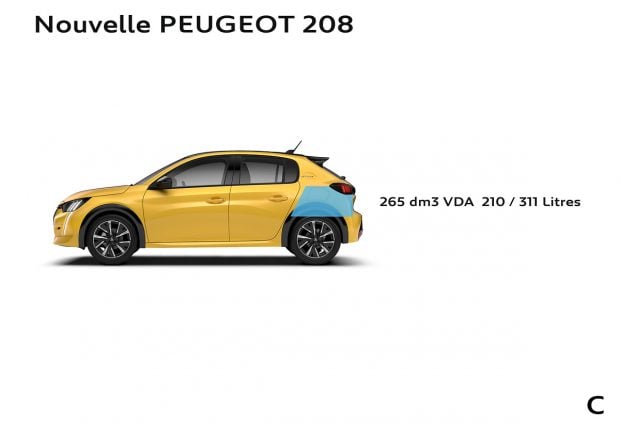

Peugeot 208 trunk volume

The Peugeot 208 trunk volume

The ratings of the Peugeot 208 in short

Ratings Values
Length (m) 4.055
Open mirrors width (M) 1.96
Height (m) 1.43
SUCCESS (M) 2.54
Front overhang (m) 0.825
Rear overhang (m) 0.69
Turning radius (m)
Trunk volume (L VDA) 265
Vacuum mass (kg) From 1023
